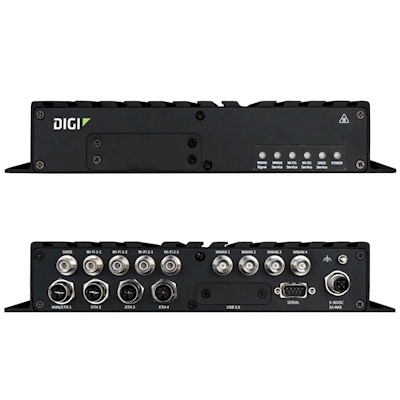

The Digi TX64 5G Rail device is a high-speed 5G NR with LTE-Advanced Pro Cat 20 and 3G fallback equipped device. It delivers 5G performance, either as a primary or failover connection. Its quad-core processor gives it speeds of an industrial PC with all the networking capabilities of a cellular router. Paving the way for realizing the myriad of benefits of the 5G future alongside compatibility with standards such as FRMCS, this first industry-standard 5G rail-rated device prepares you for the future today.
Additional Features and Benefits:
– TX64-R210-PR SKU is FirstNet Ready™ for Primary Responder communication
– WR44 RR drop-in replacement and upgrade
– EN50155, IEC 60068-2-1/2-2/2-30, and MIL-STD 810G certified
– Wired M12 Gigabit Ethernet (4-port) for onboard systems
– Untethered dead reckoning combines GNSS with inertial sensors for monitoring exact train positioning and speed
For ease of prototype and installations, two accessories are sold separately:
– 76002108: M12 T-Code power cable
– 76002109: WR44RR to TX64 5G Rail (this product) M12 Ethernet adapter cables
